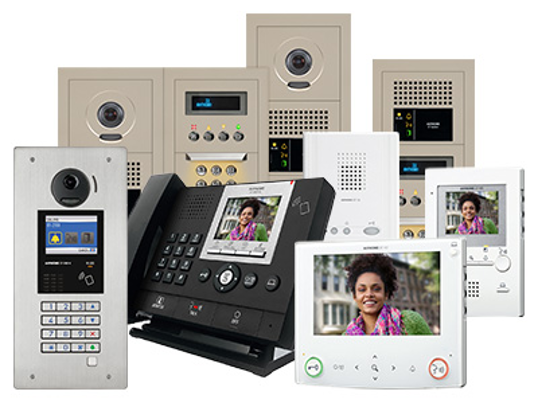

GT Series

Aiphone

Multi-tenant Video Entry

Multi-tenant Video Entry. Tenants or guards can quickly and easily identify visitors before granting them entry into their building.

Make Enquiry

Product Enquiry

"*" indicates required fields

Specifications

Power Source: 24V DC – use specified number of PS-2420ULs per system configuration
Network Protocols: IPv4, IPv6, TCP, UDP, IGMP, MLD, DHCP, NTP, DNS (protocols are for systems using GT-MCX network adaptor)
Communication: Hands-free from entrance station to tenant station
Capacity (Single Building): Max. 16 entrance stations per system
Max. 4 video guard stations per system
Max. 500 tenant stations per system
Max. 4 tenant stations per unit
Capacity (Multi Building): Max. 480 entrance stations per system
Max. 96 video guard stations per system
Max. 5,000 tenant stations per system
IP Rating: IP54 (DMB)
IK Rating: IK07 (DMB)
Material: Zinc die cast (modular entrance stations) 14 gauge stainless steel (GT-DMB-N)
Mounting: Surface or flush mount using appropriate back box
Wire Type: Two sets of 2-cond., PE insulation (two common buses for audio and video)
Aiphone #872002, 2-cond., PE insulated, non-shielded, 11.05 pf/ft (audio)
Aiphone #871802, 2-cond., PE insulated, non-shielded, 11.05 pf/ft (video)
Distance: GT-BC to farthest entrance station: 980′
GT-BC to farthest tenant station (audio): 980′
GT-VBC to farthest entrance station: 980′
GT-VBC to farthest tenant station (video): 500′

Features

A standard system can have up to 5 entrance stations, 2 video guard stations, and 48 tenant stations

An expanded system can have up to 16 entrance stations, 4 video guard stations, and 500 tenant stations

An enterprise-level system can have up to 480 entrance stations, 96 video guard stations, and 5,000 tenant stations

Multiple sites can connect across different buildings over the same network, centralizing security for large campuses and multi-building communities

Software-based programming allows for quick and easy system maintenance

Prompt, hassle-free tenant directory updates can be performed onsite with an NFC-equipped device or remotely over the same network

Both audio and video stations can be intermixed to meet the needs of most applications

Entrance stations have a digital directory or individual buttons to call tenants Video guard stations can receive and forward calls to tenants, screening visitors for an added layer of security

Modular entrance stations can be customized with various options and configurations

Video entrance stations capture 170° viewing area with the built-in PTZ camera
